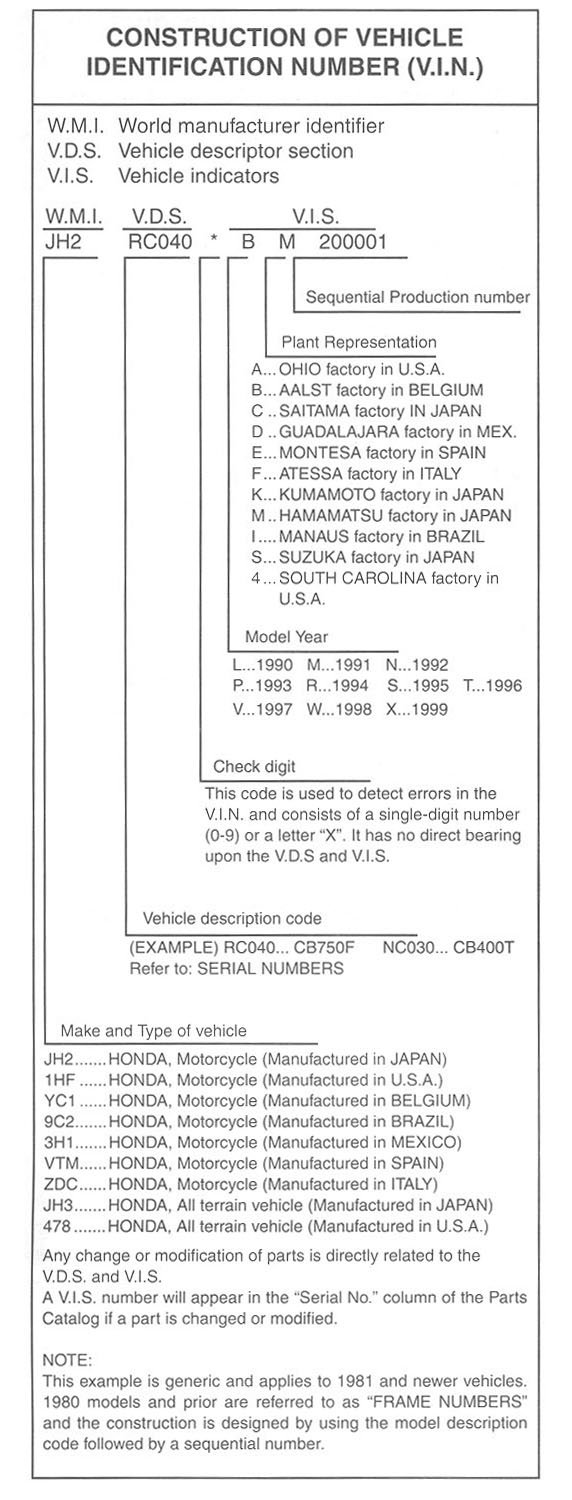

  VIN Table



                                Honda CTX 1300 Specifications - 2014 - Class: Touring




DIMENSIONS Overall length 2380 mm / 93.7 in
Overall width 940 mm / 37.0 in
Overall height 1170 mm / 46.1 in
Seat height 740 mm / 29.1 in
Wheelbase 1645 mm / 64.8 in
Ground clearance 130 mm / 5.1 in
Dry weight 306 kg / 674 lbs.   (fuel, coolant, engine, diff, fork, clutch, brake oils)
Curb (wet) weight 328 kg / 724 lbs.
FRAME Type Double cradle (steel)
Front suspension, travel Inverted telescopic fork (non-adjustable) 45 mm, 104 mm / 4.1 in
Rear suspension, travel Swing arm with twin-shock (adjustable spring pre-load), 109 mm / 4.3 in
Front tire size 130/70-R18 M/C (63V)
Rear tire size 200/50-R17 M/C (75V)
Front brake Double disc, 310 mm, 3-piston calipers (combined, optional - ABS)
Rear brake Single disc, 316 mm, 3-piston caliper (combined, optional - ABS)
Fuel capacity 19.1 L / 5.0 US gal
Trail 118 mm / 4.6 in
Fuel economy / consumption 4.9 l /100 km  (57 impg)
ENGINE Type Water cooled 4-stroke
Cylinder arrangement 4-cylinders 90° V
Bore & Stroke 78.0 x 66.0 mm
Displacement 1261 cm³ (76.9 cu in)
Compression ratio 10.0:1
Valve train Chain driven DOHC, 4 valves per cylinder
Max. power 84.0 hp. (62.0 kW) / 6000 rpm
Max. torque 106.0 Nm (10.8 kgf*m) / 4500 rpm
Acceleration 0 to 100 km/h (0-60 mph) 4.0 sec.
Top speed 193 km/h (120 mph)
CARBURETION SYSTEM Type Fuel injection (PGM-Fi), 4x 36 mm
ID
DRIVE TRAIN Clutch Wet, multi-plate, hydraulic operating
Transmission 5-speed, TCS (traction control system)
Final drive Shaft
Primary reduction 1.785
Final reduction 2.833
Gear ratio
I 2.571
II 1.722
III 1.285
IV 1.041
V 0.862





ELECTRICAL Ignition Fully transistorized
Alternator Three-phase AC
Battery capacity 12V-11.2 / 11.8Ah
